10066531 | WISKA

Cable gland kit, with locknut, M63, 68 mm, IP68/IP69, light gray, 10066531

Order No.: 49P0039
EAN: 4007685035842
MPN:
10066531
ESKV-SET 63 LG
Series: ESKV-SET
10066531 WISKA Cable Glands
Image may differ
Unit Price (€ / pc.)
9.8532 € *
Available: 3 pcs.
Total Price:
9.85 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8532 €
10 pcs.
8.9845 €
50 pcs.
8.4014 €
100 pcs.
7.8302 €
*incl. VAT plus shipping costs
Subject to prior sale

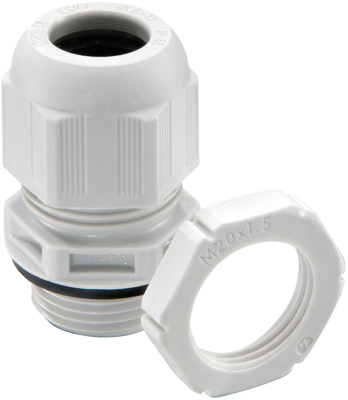

Cable gland with locknut, 10066531, WISKA

Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 with a moulded sealing lip, and in size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.

Technical specifications
Thread size M63
Material PA
max. operating temperature 100 °C
spanner size 68 mm
Product type cable gland kit
Version with locknut
Length 78 mm
min. operating temperature -40 °C
Degree of protection (IP) IP68/IP69
Colour light gray
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
