10066530 | WISKA

Cable gland kit, with locknut, M50, 55 mm, IP68/IP69, light gray, 10066530

Order No.: 49P0038
EAN: 4007685035835
MPN:
10066530
ESKV-SET 50 LG
Series: ESKV-SET
10066530 WISKA Cable Glands
Image may differ
Unit Price (€ / pc.)
6.6402 € *
Available: 4 pcs.
Total Price:
6.64 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6402 €
10 pcs.
6.0571 €
50 pcs.
5.6644 €
100 pcs.
5.2717 €
*incl. VAT plus shipping costs
Subject to prior sale

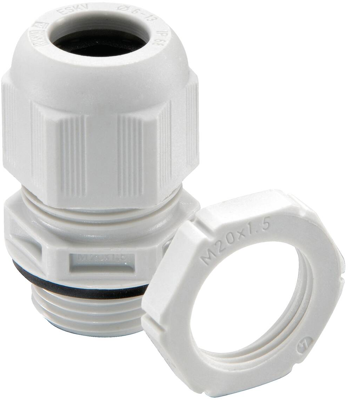

Cable gland with locknut, 10066530, WISKA

Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 with a moulded sealing lip, and in size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.

Technical specifications
Thread size M50
Material PA
max. operating temperature 100 °C
spanner size 55 mm
Product type cable gland kit
Version with locknut
Length 72 mm
min. operating temperature -40 °C
Degree of protection (IP) IP68/IP69
Colour light gray
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
