10066529 | WISKA

Cable gland kit, with locknut, M40, 46 mm, IP68/IP69, light gray, 10066529

Order No.: 49P0037
EAN: 4007685035828
MPN:
10066529
ESKV-SET 40 LG
Series: ESKV-SET
10066529 WISKA Cable Glands
Image may differ
Unit Price (€ / pc.)
4.2126 € *
Available: 10 pcs.
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2126 €
10 pcs.
3.8318 €
50 pcs.
3.5938 €
100 pcs.
3.3439 €
*incl. VAT plus shipping costs
Subject to prior sale

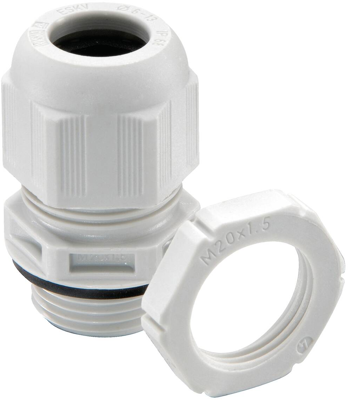

Cable gland with locknut, 10066529, WISKA

Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 with a moulded sealing lip, and in size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.

Technical specifications
Degree of protection (IP) IP68/IP69
max. operating temperature 100 °C
Product type cable gland kit
Thread size M40
Colour light gray
min. operating temperature -40 °C
Length 65 mm
Material PA
Version with locknut
spanner size 46 mm
Logistics
Customs tariff number 39269097
Country of origin DE
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
