10066416 | WISKA
Cable gland, with short connection thread, M50, 55 mm, IP68/IP69, light gray, 10066416
Unit Price (€ / pc.)
6.7116 € *
Available: 4 pcs.
Total Price:
6.71 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7116 €
10 pcs.
6.1047 €
50 pcs.
5.4859 €
100 pcs.
4.8790 €
*incl. VAT plus shipping costs
Subject to prior sale

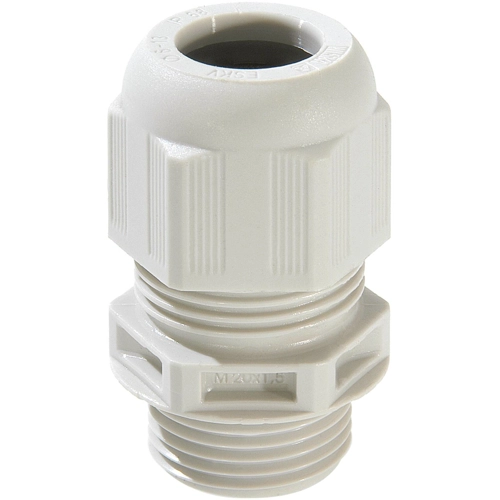

Cable gland, 10066416, WISKA
Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 with a moulded sealing lip, size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 55 mm | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| Degree of protection (IP) | IP68/IP69 | |
| Version | with short connection thread | |
| Length | 72 mm | |
| Thread size | M50 | |
| Colour | light gray | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
