10066415 | WISKA

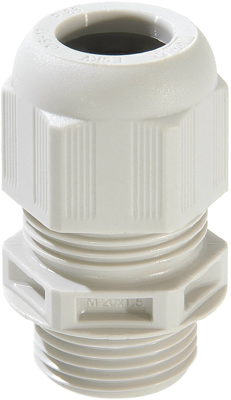

Cable gland, with short connection thread, M40, 46 mm, IP68/IP69, light gray, 10066415

Order No.: 49P0005
EAN: 4007685020701
MPN:
10066415
ESKV 40 LG
Series: ESKV
10066415 WISKA Cable Glands
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Available: 10 pcs.
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
3.9508 €
50 pcs.
3.5581 €
100 pcs.
3.1654 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable gland, 10066415, WISKA

Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 with a moulded sealing lip, size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.

Technical specifications
Thread size M40
Material PA
max. operating temperature 100 °C
spanner size 46 mm
Product type cable gland
Version with short connection thread
Length 65 mm
min. operating temperature -40 °C
Degree of protection (IP) IP68/IP69
Colour light gray
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
