10066410 | WISKA
Cable gland, with short connection thread, M12, 16 mm, IP68/IP69, light gray, 10066410
Unit Price (€ / pc.)
0.5712 € *
Next delivery: 50 pcs. on 2025-06-10
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.5236 €
50 pcs.
0.4641 €
100 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale

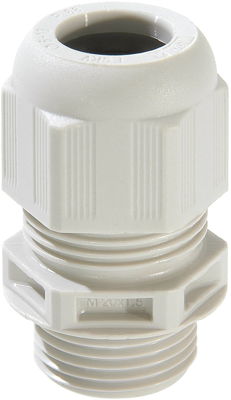

Cable gland, 10066410, WISKA
Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 with a moulded sealing lip, size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.
Technical specifications
| spanner size | 16 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C | |
| Degree of protection (IP) | IP68/IP69 | |
| Thread size | M12 | |
| Length | 34 mm | |
| Colour | light gray | |
| Version | with short connection thread | |
| Material | PA | |
| Product type | cable gland |
Download
Logistics
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
