10066127 | WISKA

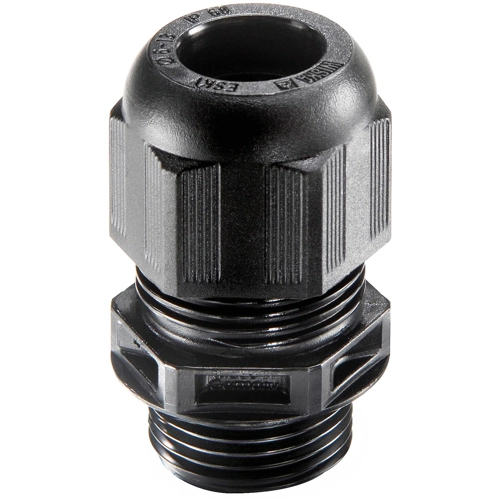

Cable gland, with short connection thread, M63, 68 mm, IP68/IP69, black, 10066127
Unit Price (€ / pc.)
10.4125 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
10.41 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4125 €
10 pcs.
9.4724 €
50 pcs.
8.5204 €
100 pcs.
7.5684 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 10066127, WISKA
Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 with a moulded sealing lip, size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.
Technical specifications
| spanner size | 68 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C | |
| Degree of protection (IP) | IP68/IP69 | |
| Thread size | M63 | |
| Length | 78 mm | |
| Colour | black | |
| Version | with short connection thread | |
| Material | PA | |
| Product type | cable gland |
Download
Logistics
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
