10061277 | WISKA

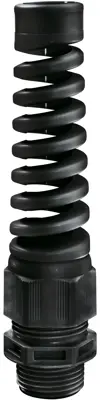

Cable gland, with bend protection, M16, 20 mm, IP68/IP69, black, 10061277

Order No.: 49P0046
EAN: 4007685018906
MPN:
10061277
ESKVS 16 BK
Series: ESKVS
10061277 WISKA Cable Glands
Image may differ
Unit Price (€ / pc.)
1.1543 € *
Available: 50 pcs.
Total Price:
1.15 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1543 €
10 pcs.
0.9996 €
50 pcs.
0.9282 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable gland with locknut, 10061277, WISKA

Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Special cap nut with moulded anti-kink spiral for use in conjunction with a cable that is not permanently installed. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 by a moulded sealing lip, and in size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.

Technical specifications
Thread size M16
Material PA
max. operating temperature 100 °C
spanner size 20 mm
Product type cable gland
Version with bend protection
Length 88 mm
min. operating temperature -40 °C
Degree of protection (IP) IP68/IP69
Colour black
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
