10060759 | WISKA
Cable gland, with bend protection, M20, 24 mm, IP68/IP69, light gray, 10060759
Unit Price (€ / pc.)
1.4042 € *
Available: 25 pcs.
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4042 €
10 pcs.
1.2257 €
50 pcs.
1.1305 €
100 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale

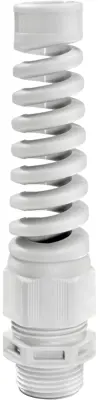

Cable gland with locknut, 10060759, WISKA
Cable gland made of high-quality polyamide 6.6 for indoor and outdoor use. Special cap nut with moulded anti-kink spiral for use in conjunction with a cable that is not permanently installed. Optimum sealing and strain relief thanks to the special WISKA lamella system with an enlarged contact surface and a large sealing area. Sealing to the housing in size M12 to M32 by a moulded sealing lip, and in size M40 to M63 with a connection thread sealing ring. The seal is made of EPDM and is characterised by excellent resistance to water, ozone, UV radiation, and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against over-tightening of the cap nut.
Technical specifications
| Thread size | M20 | |
| Material | PA | |
| max. operating temperature | 100 °C | |
| spanner size | 24 mm | |
| Product type | cable gland | |
| Version | with bend protection | |
| Length | 112 mm | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68/IP69 | |
| Colour | light gray |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
