SB369H11 | Wiha

Pin wrench kit, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm, hexagon, SB369H11

Order No.: 02L2583
EAN: 4010995364540
MPN:
SB369H11
36454
Wiha
SB369H11 Wiha Allen and Torx Keys Image 1
SB369H11 Wiha Allen and Torx Keys Image 2
Image may differ
Print
Key Specification:
Version pin wrench kit
1000V Insulated No
Size 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm
Peak type hexagon
Download Datasheet Technical specifications
This item is no longer available.
As an alternative, we recommend the following item:
Pin wrench kit, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 9 mm, 10 mm, hexagon, 369H11
Pin wrench kit, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 9 mm, 10 mm, hexagon, 369H11
Order No.: 02L1231
Manufacturer: Wiha
per pc. 41.531 € *
Go to product
*incl. VAT plus shipping costs
Description
Technical specifications
Download
Logistics
Compliance
Replacement

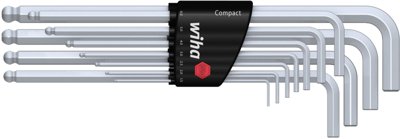

L-key set, 36454, Wiha

Blade: Chrome-vanadium steel, through hardened, matt chrome-plated. Standards: In accordance with ISO 2936L. Application: Especially for screws that are difficult to access. Extra: Due to its compact shape, the Wiha Compact Holder fits perfectly into any folding rule pocket. Spherical head enables screwing at an angle of up to 25°. Including special sizes SW 7 and SW 9.

  • 1 x spanner hexagonal ball head matt chrome-plated (01392) 1.5 x 91 mm, 15 mm
  • 1 x spanner hexagonal ball head matt chrome-plated (01393) 2 x 101 mm, 18 mm
  • 1 x spanner hexagonal ball head matt chrome-plated (01395) 2.5 x 113 mm, 20 mm
  • 1 x L-key hexagon ball head matt chrome-plated (01396) 3 x 128 mm, 23 mm
  • 1 x L-key hexagon ball head matt chrome-plated (01398) 4 x 142 mm, 29 mm
  • 1 x L-key hexagon ball head matt chrome-plated (01400) 5 x 163 mm, 33 mm
  • 1 x L-key hexagonal ball head matt chrome-plated (01402) 6 x 184 mm, 38 mm
  • 1 x L-key hexagonal ball head matt chrome-plated (01404) 8 x 206 mm, 44 mm
  • 1 x L-key hexagonal ball head matt chrome-plated (01406) 10 x 231 mm, 50 mm
  • 1 x L-key hexagon ball head matt chrome-plated (07922) 7 x 195 mm, 39 mm
  • 1 x L-key hexagon ball head matt chrome-plated (36452) 9 x 217 mm, 47 mm
Technical specifications
Peak type hexagon
Size 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 7 mm, 8 mm, 9 mm, 10 mm
Version pin wrench kit
1000V Insulated No
Articles of same specification 0
Logistics
Customs tariff number 82041100
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
