WD25 0R01 5% (J) | WIDAP
Wirewound resistor, 10 mΩ, 25 W, ±5 %, WD25 0R01 5% (J)
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.4395 € *
Available: 146 pcs.
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4395 €
10 pcs.
2.2491 €
100 pcs.
2.1301 €
500 pcs.
2.0111 €
1000 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale

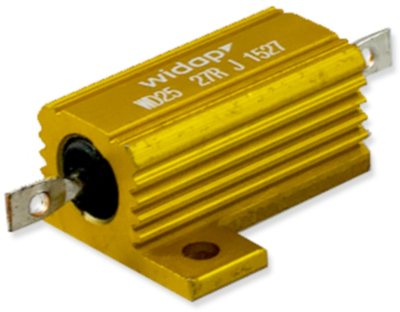

Aluminium housed wire-wound resistor, WD25 0R01 5% (J), WIDAP
The WD25 0R01 5% (J) is a high quality, high stability aluminium housed power resistor designed for direct heat sink attachment. It has a good electrical stability, reliability and is mechanically very rigid.
Features
- Excellent heat transfers and small dimensions
- Custom terminations
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 10 mΩ | |
| Tolerance | ±5 % | |
| Power | 25 W | |
| Design | chassis | |
| Assembly | chassis mounting | |
| Version | high load wire resistor | |
| Temperature coefficient | 60 ppm/K | |
| min. operating temperature | -25 °C | |
| max. operating temperature | 250 °C | |
| nominal load capacity without cooling surface | 12.5 W | |
| Length | 27.3 mm | |
| Width | 28 mm | |
| Height | 15 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
