WD200 0R10 5% (J) | WIDAP

Wirewound resistor, 100 mΩ, 200 W, ±5 %, WD200 0R10 5% (J)

Order No.: 63E4625
EAN: 4099879701022
MPN:
WD200 0R10 5% (J)
Series: WD200

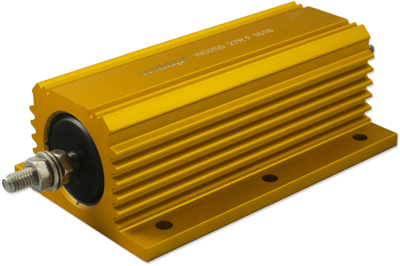

WD200 0R10 5% (J) WIDAP Wirewound Resistors
Image may differ
Unit Price (€ / pc.)
30.8924 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
61.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2 pcs.
30.8924 €

Aluminium housed wire-wound resistor, WD200 0R10 5% (J), WIDAP

The WD200 0R10 5% (J) is a high quality, high stability aluminium housed power resistor designed for direct heat sink attachment. It has a good electrical stability, reliability and is mechanically very rigid.

Features

  • Excellent heat transfers and small dimensions
  • Custom terminations
  • RoHS compliant
Technical specifications
Temperature coefficient 60 ppm/K
nominal load capacity without cooling surface 50 W
Assembly chassis mounting
Width 73 mm
Height 45 mm
Power 200 W
Length 89 mm
Version high load wire resistor
Design chassis
min. operating temperature -25 °C
Tolerance ±5 %
max. operating temperature 250 °C
ohmic resistance 100 mΩ
Logistics
Country of origin IN
Customs tariff number 85332100
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
