WD150 0R68 5% (J) | WIDAP
Wirewound resistor, 680 mΩ, 150 W, ±1 %, WD150 0R68 5% (J)
Unit Price (€ / pc.)
11.1622 € *
Standard delivery time from the manufacturer is: On Request

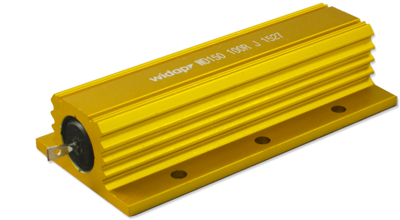

Aluminium housed wire-wound resistor, WD150 0R68 5% (J), WIDAP
The WD150 0R68 5% (J) is a high quality, high stability aluminium housed power resistor designed for direct heat sink attachment. It has a good electrical stability, reliability and is mechanically very rigid.
Features
- Excellent heat transfers and small dimensions
- Custom terminations
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 680 mΩ | |
| Width | 48 mm | |
| nominal load capacity without cooling surface | 55 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | 60 ppm/K | |
| max. operating temperature | 250 °C | |
| Power | 150 W | |
| min. operating temperature | -25 °C | |
| Version | high load wire resistor | |
| Assembly | chassis mounting | |
| Design | chassis | |
| Height | 26 mm | |
| Length | 97 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
