AE 24 | WEZAG

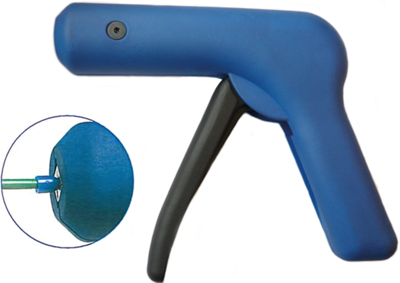

Crimping pliers for wire end ferrules, 0.25-6.0 mm², AWG 24-10, WEZAG AE 24
Order No.: 05L8365
EAN: 4099891355296
MPN:
AE 24
As a private customer, you can buy this item as soon as we have it back in stock.
Crimp tools, type WEZAG AE24.
For ergonomic crimping of wire end ferrules with and without insulation. Automatic cross-section adjustment, even precision crimp joint across the entire length of the ferrule, forced lock with release mechanism; Cross-section: 0.25 to 6.0 mm², (AWG 24 to 10). Crimp length: max. 18 mm. Crimp shape: square.
Type: AE24, crimp tool
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | wire end ferrules | |
| Crimping Range (mm²) | 0.25-6.0 mm² | |
| Crimping Range (AWG) | AWG 24-10 | |
| Weight | 300 g |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
