956 100 75 | Werma

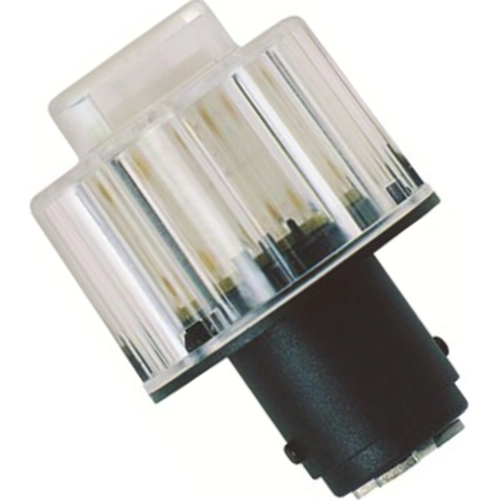

LED lamp, BA15d, 1.08 W, 24 V (DC), 24 V (AC), red, 956 100 75
Unit Price (€ / pc.)
45.6603 € *
Standard delivery time from the manufacturer is: 2 Weeks
Corresponding LEDs, type 956.
Particularly long useful life, impact and vibration resistant; socket: BA 15d. Overall length: 42 mm. Design: 24 V AC/DC, suited for permanent (840../641..) and flash beacons (841../642..), 230 VAC for permanent beacons (840../641..).
Technical attributes (type, LED color, voltage/max. current): 956.100.75, red, 24 V AC/DC/45 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 45 mA | |
| Rated voltage (AC) | 24 V | |
| Power | 1.08 W | |
| Colour of the LED | red | |
| diameter | 29 mm | |
| Rated voltage (DC) | 24 V | |
| Dimmable | No | |
| Length | 41 mm | |
| Product type | LED | |
| Socket version | BA15d |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85419000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
