699 830 75 | Werma

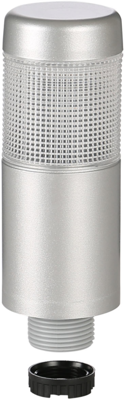

LED signal tower with buzzer, Ø 38 mm, 85 dB, 3000 Hz, yellow, 24 V AC/DC, 699 830 75

Order No.: 36M1816
EAN: 4049787039199
MPN:
699 830 75
699.830.75
Series: Kompakt 37
699 830 75 Werma Combination signal transmitter
Image may differ
Unit Price (€ / pc.)
86.7034 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
86.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
86.7034 €

Acoustic Signal Transmitter, 699 830 75, Werma

K37cl sr plug EM Pulse tone 24VAC/DC YE

Technical Data

  • Resonant frequency: 3.000 Hz
  • Colour: yellow
  • Sound pressure level: 85 dB
  • Installation diameter: 38 mm
Technical specifications
Filter Property Value
Version LED signal tower with buzzer
Degree of protection (IP) IP65
Voltage 24 V AC/DC
Height 107 mm
diameter 38 mm
Farbe der Beleuchtung yellow
Frequency 3000 Hz
Colour yellow
Sound pressure level 85 db
Rated current 55 mA
Logistics
Property Value
Customs tariff number 85319000
Country of origin CN
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
