699 210 75 | Werma

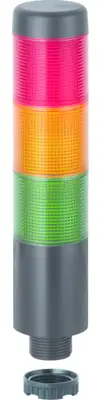

LED signal tower with buzzer, Ø 38 mm, 85 dB, 2900 Hz, green/yellow/red, 24 V AC/DC, 699 210 75

Order No.: 36M1795
EAN: 4049787029053
MPN:
699 210 75
699.210.75
Series: Kompakt 37
699 210 75 Werma Combination signal transmitter
Image may differ
Unit Price (€ / pc.)
127.1991 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
127.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
127.1991 €

Acoustic Signal Transmitter, 699 210 75, Werma

K37 plug EM Pulse tone 24VAC/DC GN/YE/RD

FEATURES

  • Pre-assembled signal tower with max. 5 tiers with or without buzzer
  • LED permanent light
  • Available with M12 plug or cable connection
  • Also available in metal finish and clear lens

Technical Data

  • Resonant frequency: 2.900 Hz
  • Colour: green/yellow/red
  • Sound pressure level: 85 dB
  • Installation diameter: 38 mm
Technical specifications
Farbe der Beleuchtung green/yellow/red
Colour green/yellow/red
Height 175 mm
Rated current 125 mA
Voltage 24 V AC/DC
Degree of protection (IP) IP65
Version LED signal tower with buzzer
Sound pressure level 85 db
Frequency 2900 Hz
diameter 38 mm
Logistics
Customs tariff number 85319000
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
