690 300 55 | Werma

LED signal tower with acoustics, 85 dB, 2400 Hz, green/yellow/red, 24 VDC, 690 300 55

Order No.: 32M3906
EAN: 4099891539467
MPN:
690 300 55
690.300.55
Series: VarioSIGN

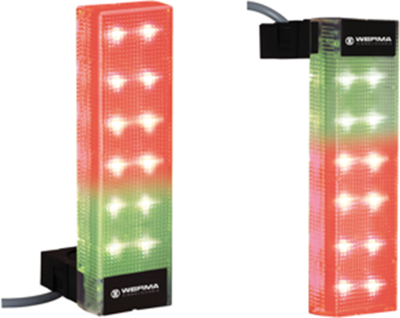

690 300 55 Werma Combination signal transmitter Image 1
690 300 55 Werma Combination signal transmitter Image 2
Image may differ
Unit Price (€ / pc.)
239.7255 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
239.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
239.7255 €

Signal and alarm beacons, type Werma VarioSIGN.

Actuated by signal input. The light element can be mounted in vertical (facing up or down) or horizontal position; Rated voltage: 24 VDC. Housing: PC/ABS blend, black. Lens: PC, transparent. Mounting: floor mount. Connection: screw terminals, max. 1.5 mm². Degree of protection: IP 65. Operating temperatures: –30 °C to +50 °C.

Permanent red, yellow and green light.

Default color arrangement by three sections; Current consumption optical/acoustic system: 55 mA per level/20 mA.

Technical attributes (type, lighting mode, with/without acoustic signal): 690.300.55, double-sided, with acoustic signal (85 dB)

Technical specifications
Colour clear
Degree of protection (IP) IP65
Rated current 55 mA
Sound pressure level 85 db
Width 62 mm
Height 220 mm
Length 90 mm
Farbe der Beleuchtung green/yellow/red
Version LED signal tower with acoustics
Voltage 24 VDC
Frequency 2400 Hz
Logistics
Country of origin DE
Customs tariff number 85318070
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, Lead titanium zirconium oxide
SVHC free No
RoHS conform Yes
