461 320 70 | Werma

LED signal light with acoustics, Ø 85 mm, 110 dB, 3300 Hz, yellow, 12-24 V AC/DC, 461 320 70

Order No.: 36M2649
EAN: 4099891617837
MPN:
461 320 70
461.320.70
Series: EvoSIGNAL Midi

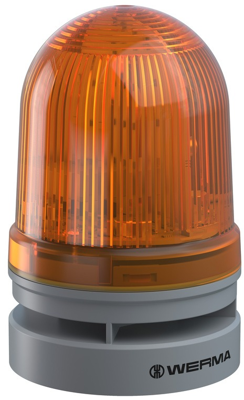

461 320 70 Werma Combination signal transmitter
Image may differ
Unit Price (€ / pc.)
181.1418 € *
Next delivery: 1 pcs. on 2025-08-18
Total Price:
181.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
181.1418 €

Beacon buzzer, 461.320.70, Werma

Features

  • Medium visual/acoustic combination
  • For signalling over medium distances (10 – 30 m)
  • TwinFLASH: Two light effects in one product (flash and EVS flash)
  • Multi-tone sounders: 10 tones at 110 Db
Technical specifications
Filter Property Value
Version LED signal light with acoustics
Voltage 12-24 V AC/DC
diameter 85 mm
Farbe der Beleuchtung yellow
Height 130 mm
Degree of protection (IP) IP66
Frequency 3300 Hz
Rated current 205 mA
Sound pressure level 110 db
Logistics
Property Value
Country of origin DE
Customs tariff number 85311095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
