840 500 00 | Werma

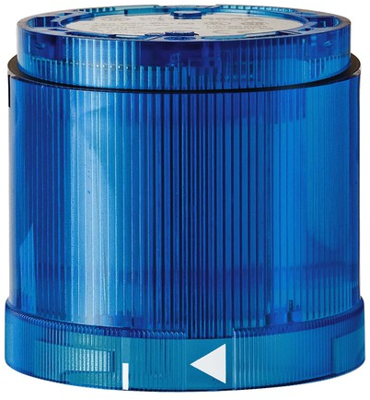

Permanent light element, Ø 70 mm, blue, 12-230 V AC/DC, BA15d, IP54, 840 500 00
Signal and alarm beacons, type Werma KombiSIGN 70/71.
Can be operated as single beacon or beacon tower for visual and acoustic signals, for base/bracket/tube mounting; Functions: permanent/flash/strobe beacon. Buzzer and siren elements are available on separate order. A bayonet lock facilitates their quick and precise interconnection. A lid for covering the top and corresponding base fittings for tube/base or bracket mounting are available on separate order. Material: polycarbonate, transparent, colored, black base and lid. Socket: BA 15d (bayonet) for filament bulb max. 7.0 W or LED. Connection: screw terminals or cage clamp technology. Seal: preinstalled. Operating temperatures: –20 to +50 °C.
Signal and alarm beacons, type KombiSIGN 70.
Degree of protection: IP 54. Dimensions: A 85, B 184, C 240, D 296, E 352, F 410 mm.
Technical attributes (type, version, color, with/without lamp): 840.500.00, permanent beacon 12 - 240 VUC, blue, without lamp
| Filter | Property | Value |
|---|---|---|
| Height | 66 mm | |
| diameter | 70 mm | |
| Degree of protection (IP) | IP54 | |
| Farbe der Beleuchtung | blue | |
| Colour | blue | |
| Voltage | 12-230 V AC/DC | |
| Version | permanent light | |
| Socket version | BA15d |
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85318070 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
