816 480 53 | Werma

Recessed LED permanent light, Ø 75 mm, 5 VDC, IP65, 816 480 53

Order No.: 32M3217
EAN: 4099891539139
MPN:
816 480 53
816.480.53
Series: 816

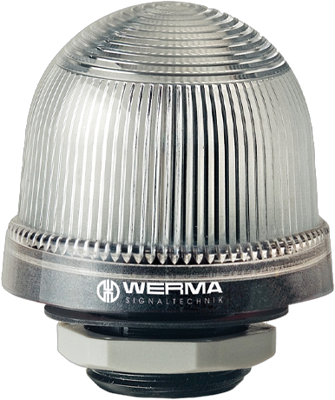

816 480 53 Werma Beacons Image 1
816 480 53 Werma Beacons Image 2
Image may differ
Unit Price (€ / pc.)
204.5848 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
204.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
204.5848 €

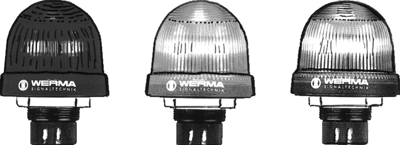

Panel signal and alarm beacons, type Werma 815/816/817.

Protected against vandalism, impact-resistant and waterproof, permanent or flash beacon with LED, with screw terminals, strain relief and touch protection to VDE. The lamps can be replaced quickly from the rear by means of bayonet lock; Panel-mount diameter: 37 mm (Pg 29). Degree of protection: IP 65. Operating temperatures: –20 to +50 °C. Dome: polycarbonate, serrated, transparent.

LED beacons, type Werma 816.

Lamp control directly via USB port, for more than 200,000 colors (RGB LED); Current consumption: max. 500 mA.

Type: 816.480.53, LED beacon with USB port, 5.0 V, clear

Technical specifications
Filter Property Value
Version LED permanent light
Degree of protection (IP) IP65
Voltage 5 VDC
Height 97 mm
diameter 75 mm
Colour clear
Rated current 500 mA
Installation diameter 37 mm
Logistics
Property Value
Customs tariff number 85311095
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
