690 230 55 | Werma

LED signal tower, green/red, 24 VDC, IP65, 690 230 55

Order No.: 32M3908
EAN: 4099891539474
MPN:
690 230 55
690.230.55
Series: VarioSIGN

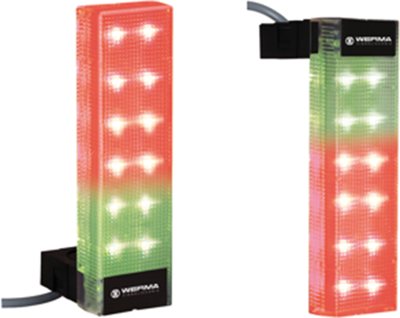

690 230 55 Werma Beacons Image 1
690 230 55 Werma Beacons Image 2
Image may differ
Unit Price (€ / pc.)
273.8904 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
273.89 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
273.8904 €

Signal and alarm beacons, type Werma VarioSIGN.

Actuated by signal input. The light element can be mounted in vertical (facing up or down) or horizontal position; Rated voltage: 24 VDC. Housing: PC/ABS blend, black. Lens: PC, transparent. Mounting: floor mount. Connection: screw terminals, max. 1.5 mm². Degree of protection: IP 65. Operating temperatures: –30 °C to +50 °C.

Permanent red, yellow and green light (RGY).

The beacon can be set up to display only one color (remote control). With DIP switch for selecting the color segmentation; Current consumption optical/acoustic system: up to 120 mA, depending on the color combination/20 mA.

Technical attributes (type, lighting mode, with/without acoustic signal): 690.230.55, single-sided, no acoustic signal

Technical specifications
Colour clear
Degree of protection (IP) IP65
Rated current 120 mA
Width 62 mm
Height 220 mm
Length 90 mm
Farbe der Beleuchtung green/red
Version LED permanent light
Voltage 24 VDC
Logistics
Country of origin DE
Customs tariff number 85318070
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
