644 100 75 | Werma

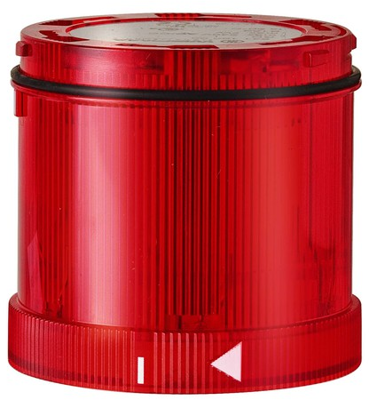

LED permanent light element, Ø 70 mm, red, 24 V AC/DC, IP65, 644 100 75

Order No.: 32M3828
EAN: 4099891539412
MPN:
644 100 75
644.100.75
Series: KombiSIGN 71
644 100 75 Werma Beacons
Image may differ
Unit Price (€ / pc.)
38.8535 € *
Available: 1 pcs.
Total Price:
38.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
38.8535 €

Signal and alarm beacons, type Werma KombiSIGN 70/71.

Can be operated as single beacon or beacon tower for visual and acoustic signals, for base/bracket/tube mounting; Functions: permanent/flash/strobe beacon. Buzzer and siren elements are available on separate order. A bayonet lock facilitates their quick and precise interconnection. A lid for covering the top and corresponding base fittings for tube/base or bracket mounting are available on separate order. Material: polycarbonate, transparent, colored, black base and lid. Socket: BA 15d (bayonet) for filament bulb max. 7.0 W or LED. Connection: screw terminals or cage clamp technology. Seal: preinstalled. Operating temperatures: –20 to +50 °C.

Signal and alarm beacons, type KombiSIGN 71.

Degree of protection: IP 65. Dimensions: A 86, B 180, C 236, D 292, E 348, F 408 mm.

Technical attributes (type, version, color, with/without lamp): 644.100.75, LED permanent beacon 24 VUC, red, with lamp

Technical specifications
Farbe der Beleuchtung red
Height 66 mm
diameter 70 mm
Version LED permanent light
Colour red
Rated current 35 mA
Degree of protection (IP) IP65
Voltage 24 V AC/DC
Logistics
Country of origin DE
Customs tariff number 85318070
Compliance
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
