203 100 00 | Werma

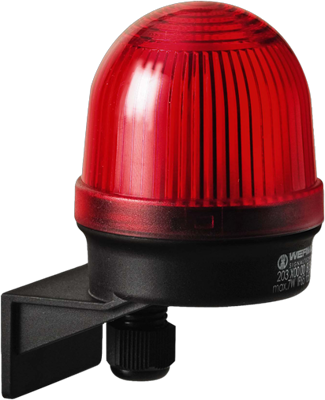

Permanent light, Ø 57 mm, red, 12-230 V AC/DC, IP65, 203 100 00
Unit Price (€ / pc.)
22.8599 € *
Standard delivery time from the manufacturer is: On Request
Signal and alarm beacons, type Werma 200 - 205.
Compact design. For use as permanent beacon with filament bulb, for bracket mounting; Degree of protection: IP 65. Operating temperatures: - 20 to +50 °C. Dome made of impact resistant polycarbonate. Termination: Wall-mounting version with screwed cable gland.
Permanent beacons with filament bulb, type 200../203.
For filament bulbs BA 15d, max. 7.0 W, operating voltage 12 to 240 V AC/DC. The filament bulbs are available on separate order.
Type: 203.100.00, permanent beacon BA 15d,wall mounting, red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Degree of protection (IP) | IP65 | |
| diameter | 57 mm | |
| Height | 91 mm | |
| Farbe der Beleuchtung | red | |
| Version | permanent light | |
| Voltage | 12-230 V AC/DC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85311095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
