202 300 55 | Werma

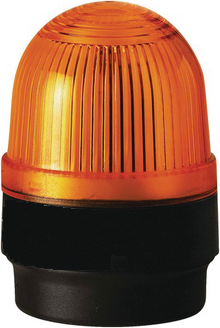

Flashing lamp, Ø 58 mm, yellow, 24 VDC, IP65, 202 300 55
Discontinued
Unit Price (€ / pc.)
101.2928 € *
Available: 2 pcs.
Total Price:
101.29 € *
Price list
Quantity
Price per unit*
1 pcs.
101.2928 €
3 pcs.
98.2583 €
10 pcs.
94.8787 €
25 pcs.
92.3559 €
*incl. VAT plus shipping costs
Subject to prior sale

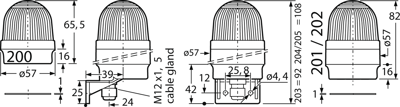

Signal and alarm beacons, type Werma 200 - 205.
Compact design. For use as strobe beacon, for base mounting; Degree of protection: IP 65. Operating temperatures: - 20 to +50 °C. Dome made of impact resistant polycarbonate. Termination: cage clamp technology.
Strobe beacons, type 202.
Strobe frequency: 0.75 Hz. Strobe energy: 1.0 W.
Type: 202.300.55, strobe beacon 24 VDC/100 mA, base mounting, yellow
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage | 24 VDC | |
| diameter | 58 mm | |
| Installation diameter | 35.5 mm | |
| Farbe der Beleuchtung | yellow | |
| Height | 81 mm | |
| Degree of protection (IP) | IP65 | |
| Colour | yellow | |
| Version | flashlight | |
| Rated current | 100 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85311095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
