844 118 55 | Werma

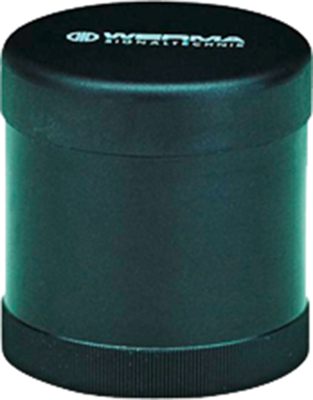

Buzzer element, 50 Hz, 85 dB, 24 V AC/DC, 25 mA, green, 844 118 55

Order No.: 32M3570
EAN: 4099891540968
MPN:
844 118 55
844.118.55
Series: KombiSIGN 70
844 118 55 Werma Acoustic Signal Transmitters
Image may differ
Unit Price (€ / pc.)
50.9439 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
50.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
50.9439 €

Corresponding acoustic elements for KombiSIGN 70, type 844.

Can be combined with the signal elements described above; Degree of protection: IP 54, acoustic elements type 84412355 IP 40, type 84412655 with 8 sounds and adjustable volume.

Technical attributes (type, version, color, with/without lamp): 844.118.55, buzzer element, 85 dB, 24 V AC/DC

Technical specifications
Filter Property Value
Resonance frequency 1750 Hz
Rated current 25 mA
Voltage 24 V AC/DC
Frequency 50 Hz
Sound pressure level 85 db
Installation diameter 70 mm
Colour green
Version buzzer element
Logistics
Property Value
Customs tariff number 85318070
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead, Lead titanium zirconium oxide
SVHC free No
