585 000 75 | Werma
Electronic small horn, 50 Hz, 98 dB, 24 V AC/DC, 80 mA, gray, 585 000 75
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
82.6931 € *
Standard delivery time from the manufacturer is: 2 Weeks

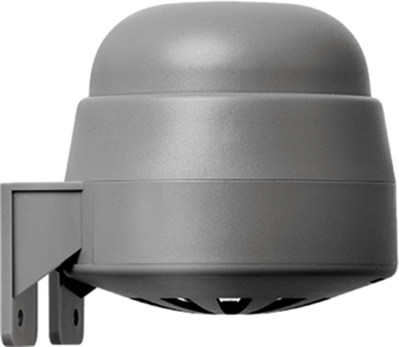

Signal horns, type Werma 585.
For bracket mounting, horn facing down; housing: PC, PC/ABS blend, gray, sound pressure level: 98 db. Duty cycle: 100%. Audio frequency: approx. 110 Hz. Degree of protection: IP 65. Operating temperatures: –20 to +50 °C. Useful life: min. 5000 h. Connection: screw terminals max. 1.5 mm². Cable diameter: max. 9.0 mm.
Technical attributes (type, rated voltage, current consumption): 585.000.75, signal horn, 24 V AC/DC, 70 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | signal horn | |
| Frequency | 50 Hz | |
| Sound pressure level | 98 db | |
| Voltage | 24 V AC/DC | |
| Rated current | 80 mA | |
| Colour | gray | |
| Resonance frequency | 110 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85311095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead titanium zirconium oxide | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
