570 052 55 | Werma
Electromechanical horn, 108 dB, 24 VDC, 350 mA, gray, 570 052 55
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
138.7778 € *
Standard delivery time from the manufacturer is: 2 Weeks

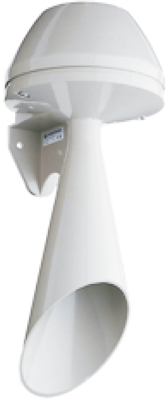

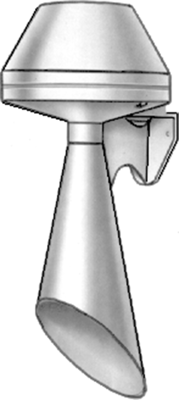

Signal horns, type Werma 570.

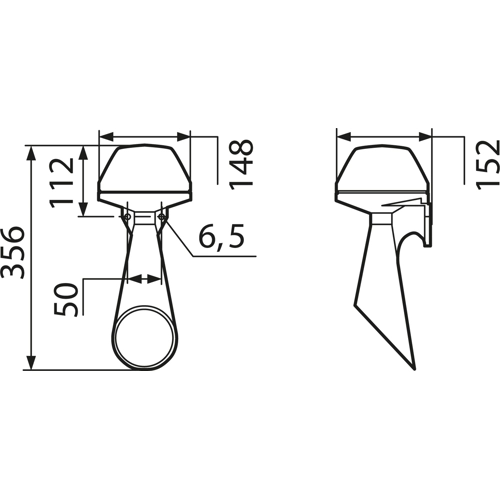

For indoor or outdoor installation, plastic housing made of impact resistant thermoplastic material (ABS), gray; Connection: screw terminals, binding posts, 1.5 mm². Cable entry: rubber squeeze grommet 7.0 to 10 mm. Operating temperatures: –20 to +60 °C. Duty cycle: 100 %. Sound pressure level: approx. 108 dB (A)/1.0 m. Degree of protection: IP 55 to IEC 60529, mounting: with horn facing downward. Dimensions: D 148, H 356 mm. Weight: 1.0 kg.
Technical attributes (type, rated voltage/rated current): 052.55, 24 VDC/350 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | signal horn | |
| Sound pressure level | 108 db | |
| Voltage | 24 VDC | |
| Rated current | 350 mA | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85311095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
