123 200 55 | Werma

Small siren, 105 dB, 24 VDC, 100 mA, black, 123 200 55

Order No.: 32M686
EAN: 4099891541231
MPN:
123 200 55
123.200.55
Series: 123

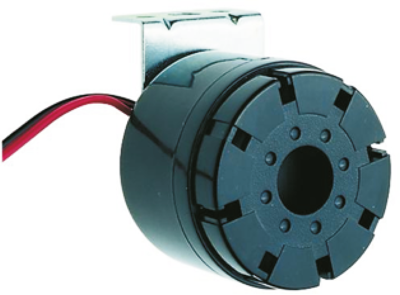

123 200 55 Werma Acoustic Signal Transmitters Image 1
123 200 55 Werma Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
26.8583 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
26.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.8583 €

Sirens, type Werma 123.

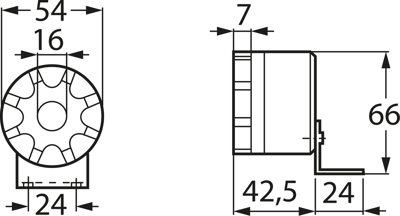

Compact design, extremely loud electronic siren; Sound pressure level: approx. 105 dB. Tone: alternating continuous tone. Audio frequency: 2500 to 3500 Hz. Operating temperatures: –30 to +70 °C. Duty cycle: 100 % ED. Degree of protection: IP 54. Housing: plastic, dark gray. Dimensions: D 54, L 42.5 mm. Wiring: 450 mm stranded wire. Mounting: metal bracket. Weight: 80 g.

Technical attributes (type, rated voltage/rated current): 123.200.55, 24 VDC/100 mA

Technical specifications
Version siren
Sound pressure level 105 db
Colour black
Rated current 100 mA
Voltage 24 VDC
Logistics
Country of origin CN
Customs tariff number 85311095
Compliance
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
