119 004 55 | Werma

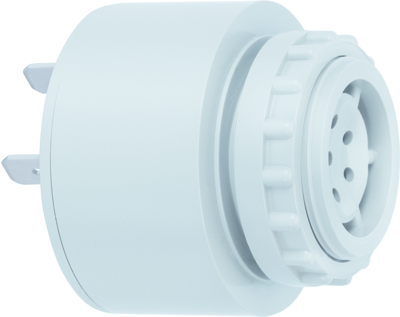

Built-in buzzer, 90 dB, 24 VDC, 25 mA, gray, 119 004 55

Order No.: 36M1020
EAN: 4049787030646
MPN:
119 004 55
119.004.55
Series: 119
119 004 55 Werma Acoustic Signal Transmitters
Image may differ
Unit Price (€ / pc.)
79.7895 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
79.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
79.7895 €

Acoustic Signal Transmitter, 119 004 55, Werma

Electr. Buzzer EM 3 tne 24VDC GY

FEATURES

  • Version with three externally triggerable tones
  • Minimal current consumption reduces operating costs
  • IP 43 with cap

Technical Data

  • Resonant frequency: 2.400 Hz
  • Colour: gray
  • Sound pressure level: 90 dB
  • Installation diameter: 43 mm
Technical specifications
Colour gray
Resonance frequency 2400 Hz
Rated current 25 mA
Sound pressure level 90 db
Version buzzer
Voltage 24 VDC
Logistics
Country of origin DE
Customs tariff number 85311095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, Lead titanium zirconium oxide
SVHC free No
RoHS conform Yes
