118 068 15 | Werma

Built-in buzzer, 50 Hz, 90 dB, 24 V AC/DC, 20 mA, gray, 118 068 15

Order No.: 36M290
EAN: 4099891541538
MPN:
118 068 15
118.068.15
Series: 118

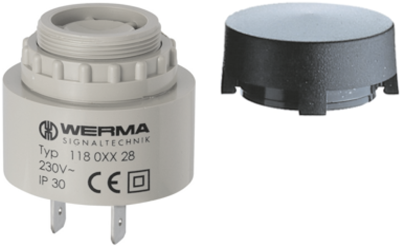

118 068 15 Werma Acoustic Signal Transmitters Image 1
118 068 15 Werma Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
38.4251 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
38.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
38.4251 €

Electronic circuit, high sound power, low current consumption, for direct M 28 x 1 bulkhead mounting in front panels or switchboards, with molded parts.

Housing: thermoplastic (ABS), impact-resistant, gray

Audio frequency: 2400 Hz

Duty cycle: 100 %

Sound pressure level: approx. 90 dB/1.0 m

Rated current: 20 mA

Operating temperatures: - 20 to +60 °C

Degree of protection: IP 30, (IP 43 when mounted accordingly. Drip water-protected with additional use of the protective cap (please order separately)

Connection: 6.3 x 0.8 tab terminals

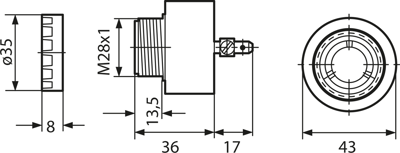

Dimensions: D 43 x 36 mm

Connections: 2 for one sounds

Weight: 55 g

Type: 118.068.15

Operating voltage: 10 to 30 V

Rated voltage: 24 V AC/DC

Sound mode: permanent sound

Type: 118.068.15

Technical specifications
Sound pressure level 90 db
Installation diameter 29 mm
Voltage 24 V AC/DC
Colour gray
Version buzzer
Resonance frequency 2400 Hz
Rated current 20 mA
Frequency 50 Hz
Logistics
Country of origin DE
Customs tariff number 85311095
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead, Lead titanium zirconium oxide
RoHS conform Yes
