114 068 28 | Werma

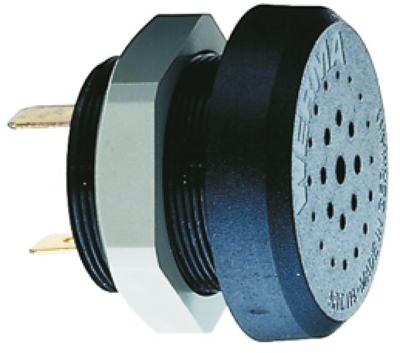

Built-in buzzer, 50 Hz, 85 dB, 230 VAC, 20 mA, black, 114 068 28
No longer available from manufacturer
Unit Price (€ / pc.)
60.2854 € *
Available: 9 pcs.
Total Price:
60.29 € *
Price list
Quantity
Price per unit*
1 pcs.
60.2854 €
5 pcs.
56.6678 €
15 pcs.
54.4901 €
50 pcs.
52.0863 €
*incl. VAT plus shipping costs
Subject to prior sale

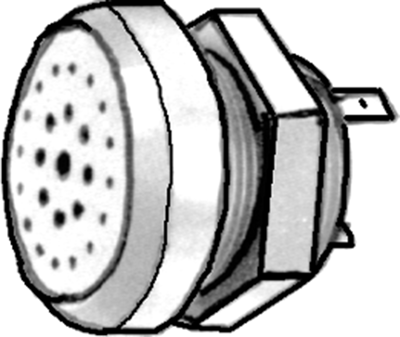

Piezo buzzers, type Werma 114.

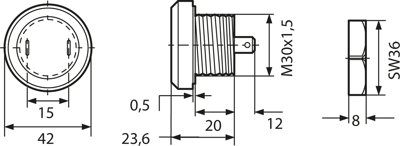

For installation from the front in control panels and front panels, with bushing mount M 30 x 1.5, powerful sound. With wide voltage range and low current consumption. Insensitive to humidity, as the electronic components are molded; Rated current: 20 mA. Sound pressure level: approx. 90 dB/1.0 m. Audio frequency: 2400 Hz. Housing: thermoplastic (ABS), impact-resistant, black. Connection: 6.3 x 0.8 tab terminals. Degree of protection: IP 30. Bushing mount M 30 x 1.5. Weight: 50 g.
Technical attributes (type, operating voltage /rated voltage): 11406828, 110 to 240 V/230 VAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Sound pressure level | 85 db | |
| Frequency | 50 Hz | |
| Resonance frequency | 2400 Hz | |
| Voltage | 230 VAC | |
| Version | piezo signal transmitter | |
| Installation diameter | 31 mm | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85311095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead, Lead titanium zirconium oxide |
