107 000 75 | Werma
Built-in buzzer, 50 Hz, 80 dB, 24 V AC/DC, 8 mA, black, 107 000 75
Order No.: 36M2050
EAN: 4099891541460
MPN:
107 000 75
107.000.75
This item is no longer available.
As an alternative, we recommend the following item:
Built-in buzzer, 2400 Hz, 60 dB, 12-24 V AC/DC, 8 mA, black, 107 000 70
Order No.: 36M2627
Manufacturer: Werma
per pc. 36.3188 € *

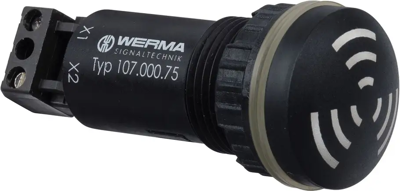

Buzzers, type Werma 107.
Electronic warning sound generator with panel-mount diameter 22.5 mm, low current consumption and high degree of protection IP 65; Sound pressure level: min. 80 dB/0.1 m. Audio frequency: approx. 2400 Hz. Sound type: depending on the type with permanent or pulsed sound at 1.0 Hz. Duty cycle: 100 %. Operating temperatures: –20 to +50 °C. Case: PA-GF, black, with M 22 bushing mount. Connection: connector with screw terminals 2 x 1.5 mm².
Technical attributes (type, rated voltage/rated current, sound mode): 10700075, 24 V AC/DC, 8.0 mA, permanent sound
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Resonance frequency | 2400 Hz | |
| Sound pressure level | 80 db | |
| Rated current | 8 mA | |
| Version | signal transmitter | |
| Frequency | 50 Hz | |
| Installation diameter | 28 mm | |
| Voltage | 24 V AC/DC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85311095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, Lead titanium zirconium oxide |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
