05073230001 | Wera
1/4 inch ratchet, external hexagon, 1/4 inch, L 87 mm, 05073230001
Order No.: 06L6160
EAN: 4013288144638
MPN:
05073230001
8001 A Zyklop Mini 1 Bit-Ratsche
Series: 8001
Unit Price (€ / pc.)
45.6603 € *
Standard delivery time from the manufacturer is: 2 Weeks

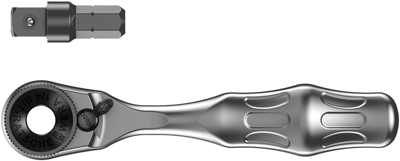

Miniature bit ratchets, type Wera 8001 A.
1/4" bit ratchet for working in confined spaces, made of drop-forged steel, easy reversal, single-hand operation, knurled wheel, fine-tooth mechanism with 60 teeth; Torque: 60 N/m. Reset angle: 6.0°. Length: 87 mm. Supplied with socket adapter (1/4" hex to 1/4" square).
Type: 073230, miniature bit ratchet, 1/4"
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Size | 1/4 inch | |
| Peak type | external hexagon | |
| Version | ratchet | |
| Number of teeth | 60 | |
| Drive | 1/4 inch | |
| 1000V Insulated | No | |
| ESD protection | No | |
| Length | 87 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 82041200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
