ULW3-27RJA1 | Welwyn

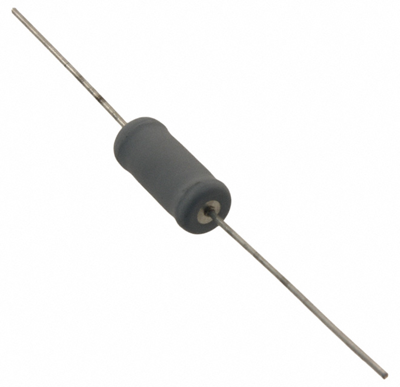

Wirewound resistor, 27 Ω, 3 W, ±5 %, ULW3-27RJA1
Unit Price (€ / pc.)
0.1607 € *
Standard delivery time from the manufacturer is: On Request
Wire-wound resistors, 2.0, 3.0 and 5.0 W, 5.0 % tolerance, type TT Electronics/Welwyn ULW.
Axial, tested to UL 94-V-0, fusible resistor; TC: ±200 ppm/°C. Operating temperatures: –55 to +155 °C. Climate category: 55/200/56. Certifications: UL. Sliding scale prices are valid exclusively for the quantity per resistance value ordered.
Rated load 3.0 W, type ULW3.
Insulation voltage: 350 V. Dimensions: D 5.8, L 14.5 mm.
Type: 27R
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5.8 mm | |
| Power | 3 W | |
| Isolation voltage | 350 V | |
| Temperature coefficient | ±200 ppm/K | |
| max. operating temperature | 155 °C | |
| Tolerance | ±5 % | |
| Length | 14.5 mm | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Design | axial | |
| ohmic resistance | 27 Ω | |
| Version | wirewound resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
