LRMAP2512R10FT4 | Welwyn

Resistor, metal alloy, SMD 2512 (6330), 100 mΩ, 3 W, ±1 %, LRMAP2512R10FT4

Order No.: 16E849
EAN: 4099879208552
MPN:
LRMAP2512R10FT4
LRMAP2512-R10FT4
Series: LRMAP
LRMAP2512R10FT4 Welwyn SMD Resistors

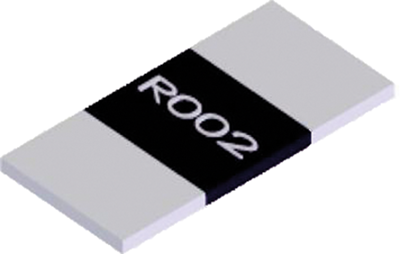

Image may differ
Unit Price (€ / pc.)
0.2713 € *
Standard delivery time from the manufacturer is: 40 Weeks
Total Price:
1,085.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
0.2713 €

SMD precision resistors, 1.0 % tolerance, type TT electronics/Welwyn LRMA.

Suitable for use as current measuring resistor; Tolerance: 1.0 %. Insulation resistance: min. 100 Mohm. Ambient temperatures: –55 to +170 °C. Certifications: AEC-Q200. Sliding scale prices are valid exclusively for the quantity per resistance value ordered.

Size 2512.

Power: 3.0 W. Overload rating: 15 W. Dimensions: L 6.4, W 3.2, H 0.65 mm.

Technical attributes (type, resistance value, temperature coefficient (TC)): 0R1, TC ±50 ppm/C°

Technical specifications
Filter Property Value
Length 6.4 mm
max. operating temperature 170 °C
Height 0.65 mm
ohmic resistance 100 mΩ
Power 3 W
Tolerance ±1 %
Temperature coefficient ±50 ppm/K
min. operating temperature -55 °C
Width 3 mm
Technology metal alloy
Design SMD 2512 (6330)
Logistics
Property Value
Original Packaging Reel with 4,000 pieces
Country of origin TW
Customs tariff number 85331000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
