WXDP 120 | Weller
Desoldering iron WX Series, Weller WXDP 120, 120 W, 24 V
Unit Price (€ / pc.)
355.81 € *
Next delivery: 1 pcs. on 2025-12-30

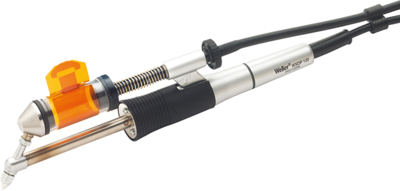

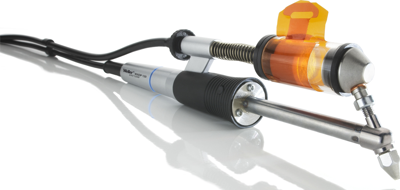

Desoldering irons, type Weller WXDP 120.
Can be connected to WX stations (WXD2, WXR3), programmable, finger switch for vacuum on the rubber-coated handle, tin cartridge with bayonet lock; Heating time: 35 s (+50 to +350 °C), or ready again in 20 s after recovering from standby. Temperature range: +93 to +454 °C. Heating power: 120 W. Operating voltage: 24 V. Suitable vacuum nozzles: XDS/XDSL series.
Type: T0051320199, desoldering iron WXDP 120
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 120 W | |
| Input voltage | 24 V | |
| Soldering tip series | XDS, XDSL | |
| min. operating temperature | 93 °C | |
| max. operating temperature | 454 °C | |
| Version | desoldering iron | |
| Suitable for | WXD series |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85151100 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
