DSX 80 + WDH 30 | Weller

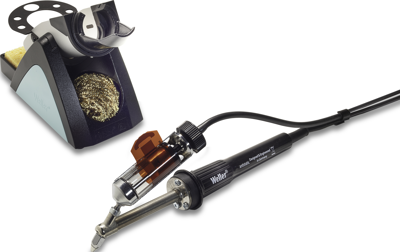

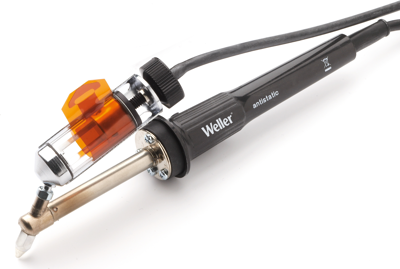

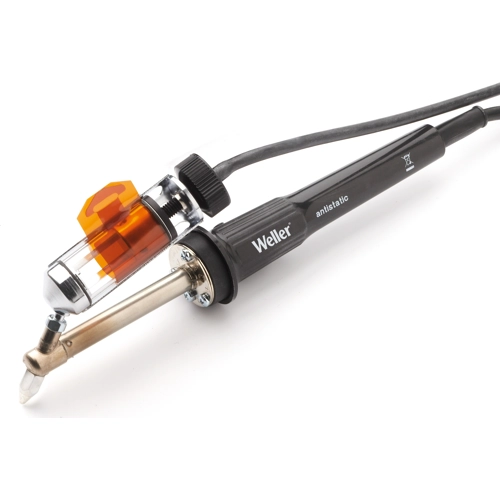

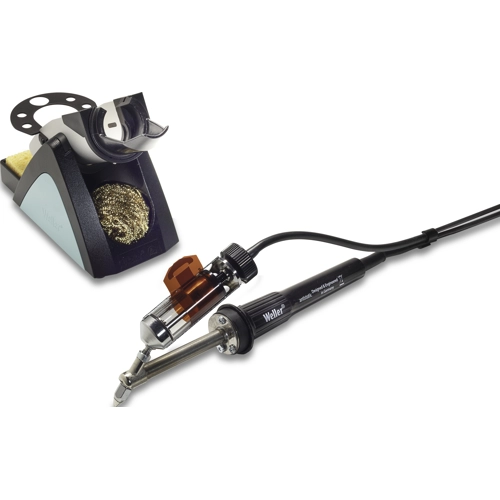

Desoldering iron DSX Series, Weller DSX 80 + WDH 30, 80 W, 24 V
Unit Price (€ / pc.)
423.8899 € *
Standard delivery time from the manufacturer is: 8 Weeks
Desoldering tools, Weller DSX 80
can also be connected to desoldering and repair stations. With electronic temperature control, range from +50°C to +450 °C. Power output 80 W/24 V. Micro finger switch for activating the quick-action vacuum pump. The unit is antistatic. Instead of the thread, the X series features an eccentric quick-action replacement system. A short turn by 90° is all that is needed for easy, quick replacement of the vacuum nozzles. The conical coupling between the heating element and vacuum nozzle ensures optimal heat transfer.
Type: T0051318399, desoldering tool DSX 80 with rack AK 20, 80 W/24 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 80 W | |
| max. operating temperature | 454 °C | |
| min. operating temperature | 93 °C | |
| Input voltage | 24 V | |
| Soldering tip series | DX | |
| Version | desoldering iron kit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85151100 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
