MG 130 + 2X 0F10 ARM 2X ALFA DÜSE F/G | Weller
WELLER solder fume extraction MG130 KIT funnel
Order No.: 10L5030
EAN: 4003019435166
MPN:
MG 130 + 2X 0F10 ARM 2X ALFA DÜSE F/G
FT91000103N
Series: MG
Unit Price (€ / pc.)
1,297.10 € *
Available: 1 pcs.

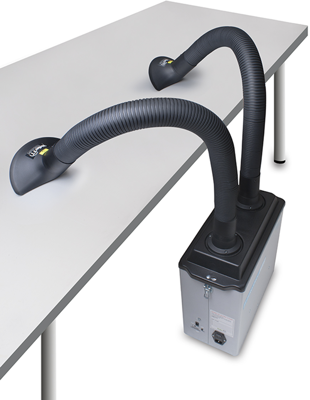

Fume extraction unit, FT91000103N, WELLER
The fume extraction unit MG 130 kit funnel nozzle is easy to install and operate. It contains flexible extraction arms 1 meter and funnel nozzle 225 x 100 mm who will fix direct on the unit. The kit is ready to place close to the workbench.
Features
- Unit purifies air up to 2 workplaces
- Filter alarm and 3 steps speed control
- 100 - 240 V power supply for global use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 100 W | |
| Voltage | 110-240 V | |
| Volume flow | 140 m³/h | |
| Sound pressure level | 52 db | |
| Length | 460 mm | |
| Width | 210 mm | |
| Height | 500 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84213925 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
