670EP | Weller Erem
ESD side cutter, 110 mm, 48 g, cut capacity (0.6/0.5 mm/–/–), 670EP
Order No.: 03L0526
EAN: 4003019076246
MPN:
670EP
Unit Price (€ / pc.)
103.887 € *
Standard delivery time from the manufacturer is: 6 Weeks

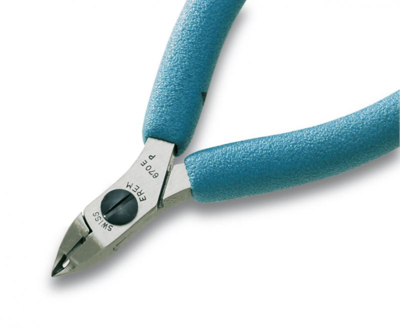

Tip cutter, 670EP, Erem
Suitable for cutting SMD and micro contacts. High-precision tip cutters. For connections of SMD micro housings up to 0.25 mm, also in pitches smaller than 1/20". For micro pitches less than 0.5 mm, use the Model 670EPF.
Technical Data
- Material: Special steel
- Weight: 68 g
- Length: 110 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| 1000V Insulated | No | |
| Cutting capacity (soft) | 0.6 mm | |
| Length | 110 mm | |
| ESD protection | Yes | |
| Material | special steel | |
| Weight | 48 g | |
| Cutting capacity (medium-hard) | 0.5 mm | |
| Version | side cutter | |
| Cutting edge | without facet |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
