9037480000 | Weidmüller
Insulated Wire end ferrule, 1.5 mm², 20 mm/12 mm long, black, 9037480000
Unit Price (€ / pc.)
0.1678 € *
Available: 0 pcs.
Available in 6 Days: 2,500 pcs.
Leadtime: On Request **

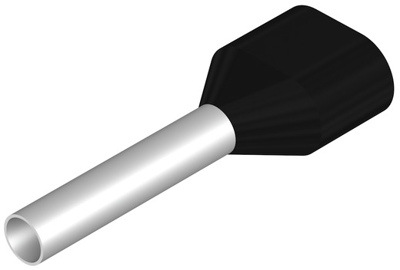

Ferrule, 9037480000, Weidmüller
Wire-end ferrule, twin wire-end ferrule, 1.5 mm², stripping length: 15 mm, contact area diameter (D1): 2.2 mm, 12 mm, black, DIN, bulk
By using the wire end ferrule, the individual strands of a stripped, flexible conductor are securely crimped through a galvanically tinned copper tube. The use of the ferrule creates long-term consistent quality in electrical connections.

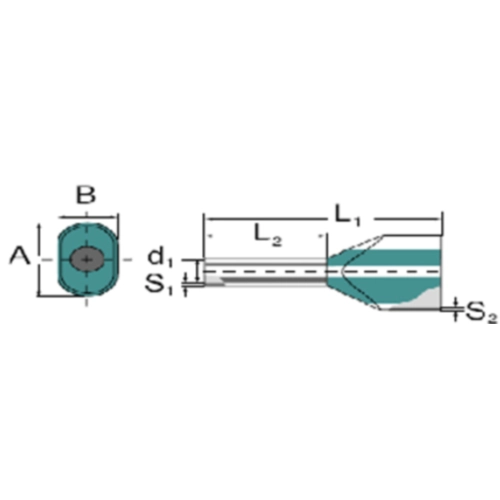

Technical specifications
| Colour | black | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 20 mm | |
| Cable cross-section | 1.5 mm² | |
| Pin lenght | 12 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
