9037410000 | Weidmüller
Insulated Wire end ferrule, 2 x 0.75 mm², 14 mm/8 mm long, gray, 9037410000
Order No.: 53P6068
EAN: 4008190492984
MPN:
9037410000
H0,75/14D ZH GR
Unit Price (€ / pc.)
0.1214 € *
Available: 0 pcs.
Available in 6 Days: 2,500 pcs.
Leadtime: On Request **

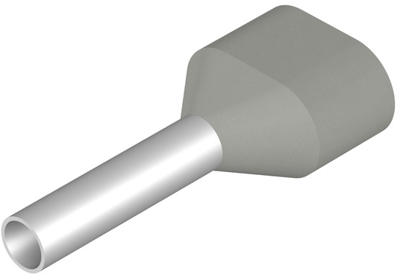

Ferrule, 9037410000, Weidmüller
Wire-end ferrule, twin wire-end ferrule, 0.75 mm², stripping length: 11 mm, contact area diameter (D1): 1.7 mm, 8 mm, gray, DIN.
By using the wire end ferrule, the individual strands of a stripped, flexible conductor are securely crimped through a galvanically tinned copper tube. The use of the ferrule creates long-term consistent quality in electrical connections.

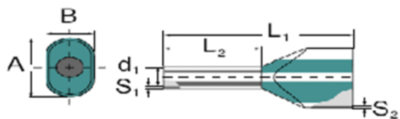

Technical specifications
| Colour | gray | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 14 mm | |
| Cable cross-section | 2 x 0.75 mm² | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
