9037380000 | Weidmüller

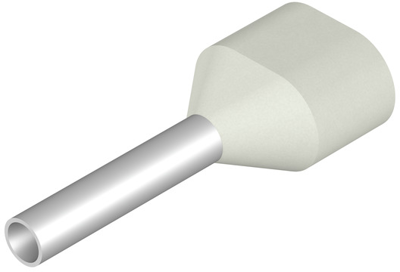

Insulated Wire end ferrule, 0.5 mm², 14 mm/8 mm long, white, 9037380000
Order No.: 53P6065
EAN: 4008190492861
MPN:
9037380000
H0,5/14D ZH W
Unit Price (€ / pc.)
0.1107 € *
Available: 0 pcs.
Available in 6 Days: 2,500 pcs.
Leadtime: On Request **
Ferrule, 9037380000, Weidmüller

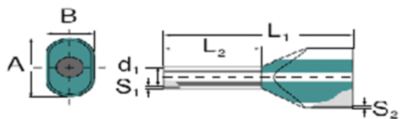

Wire-end ferrule, twin wire-end ferrule, 0.5 mm², stripping length: 11 mm, contact area diameter (D1): 1.4 mm, 8 mm, white, DIN.
By using the wire end ferrule, the individual strands of a stripped, flexible conductor are securely crimped through a galvanically tinned copper tube. The use of the ferrule creates long-term consistent quality in electrical connections.
Technical specifications
| Colour | white | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 14 mm | |
| Cable cross-section | 0.5 mm² | |
| Pin lenght | 8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
