9028350000 | Weidmüller

Insulated wire end ferrule, 1.5 mm², 16 mm/10 mm long, red, 9028350000

Order No.: 53P6003
EAN: 4008190902117
MPN:
9028350000
H1,5/16 R SV
Series: H
9028350000 Weidmüller Wire-end Ferrules Image 1
9028350000 Weidmüller Wire-end Ferrules Image 2
Image may differ
Unit Price (€ / pc.)
0.1678 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
83.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.1678 €

Ferrule, 9028350000, Weidmüller

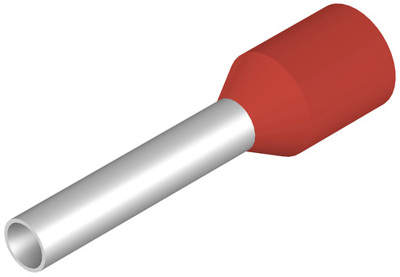

Wire-end ferrule, insulated, 1.5 mm², collar diameter (D2): 3.5 mm, stripping length: 12 mm, contact area diameter (D1): 1.7 mm, 10 mm, red

By using the wire end ferrule, the individual strands of a stripped, flexible conductor are securely crimped through a galvanically tinned copper tube. The use of the ferrule creates long-term consistent quality in electrical connections.

Technical specifications
Filter Property Value
Colour red
Cable cross-section 1.5 mm²
Pin lenght 10 mm
Contact material copper
Isolated Yes
Material Insulation polypropylene
Length 16 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
