9004250000 | Weidmüller

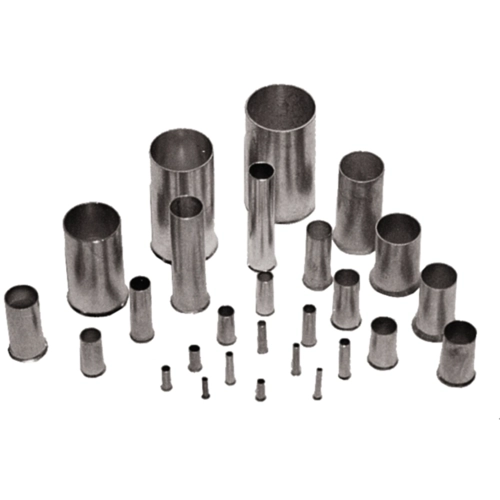

Uninsulated Wire end ferrule, 95 mm², 25 mm long, DIN 46228/1, silver, 9004250000
Order No.: 53P5594
EAN: 4008190075576
MPN:
9004250000
H95,0/25
Unit Price (€ / pc.)
1.071 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Ferrule, 9004250000, Weidmüller
Wire-end ferrule, uninsulated, 95 mm², collar diameter (D2): 17 mm, stripping length: 25 mm, contact area diameter (D1): 14.5 mm.
By using the wire end ferrule, the individual strands of a stripped, flexible conductor are securely crimped through a galvanically tinned copper tube. The use of the ferrule creates long-term consistent quality in electrical connections.
Technical specifications
| Colour | silver | |
| Isolated | No | |
| Contact material | copper | |
| Length | 25 mm | |
| Cable cross-section | 95 mm² | |
| Standard number | DIN 46228/1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
