9918970000 | Weidmüller

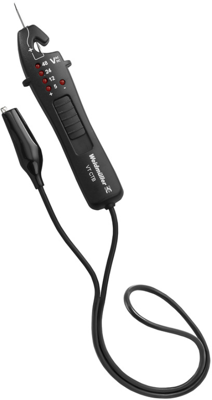

Weidmüller voltage tester, 9918970000, VT CTB
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
23.7286 € *
Available in 6 Days: 5 pcs. - if ordered today
Voltage testers, type Weidmüller Car Check.
Of particular usefulness for the automotive sector; Features and functions: voltage test, optical display, battery test, cable check, cable polarity test, test probe and piercing needle for testing cables (even insulated ones), hook catch to easily pick up one cable in a harness. Contacting: test probe with piercing needle and sliding mechanism, as well as an alligator clip for ground feedback. Cable length: approx. 1.3 m. Voltage range: 3.0 to 48 VDC. Voltage indication: 2 LEDs. Dimensions: L 137, W 21, H 18 mm. Weight: 57 g.
Type: Car check, voltage tester
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | voltage tester | |
| max. voltage measuring range (DC) | 48 V | |
| max. voltage measuring range (AC) | 48 V | |
| Rated category | CAT IV | |
| Display | LED | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
