8537390000 | Weidmüller
Transfer module, 15 pole, 1.5 A, 100 V, 8537390000, RS SD15 SZ
Unit Price (€ / pc.)
63.3675 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
63.37 € *
Price list
Quantity
Price per unit*
1 pcs.
63.3675 €
10 pcs.
58.9288 €
25 pcs.
55.9776 €
*incl. VAT plus shipping costs
Subject to prior sale

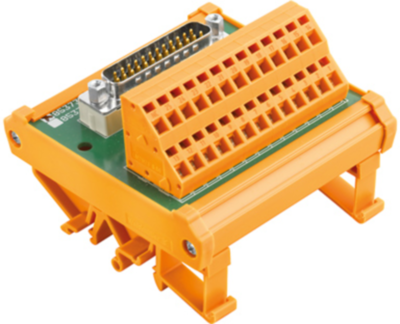

Transfer module, 8537390000, Weidmüller
Transfer module with terminal connector, SUB-D male according to IEC 60807-2 / DIN 41652, 15-pin male, LM2NZF 5.08 mm, Tension clamp connection.
Transfer module as interface with terminals and plug connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | transfer module | |
| Pin number | 15 pole | |
| Rated current | 1.5 A | |
| Rated voltage | 100 V | |
| Length | 60 mm | |
| Width | 87 mm | |
| Height | 63.6 mm | |
| Connection | tension clamp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
