8537370000 | Weidmüller
Transfer module, 25 pole, 1.5 A, 100 V, 8537370000, RS SD25 SZ
Unit Price (€ / pc.)
73.9228 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
73.92 € *
Price list
Quantity
Price per unit*
1 pcs.
73.9228 €
10 pcs.
68.7463 €
25 pcs.
65.3191 €
*incl. VAT plus shipping costs
Subject to prior sale

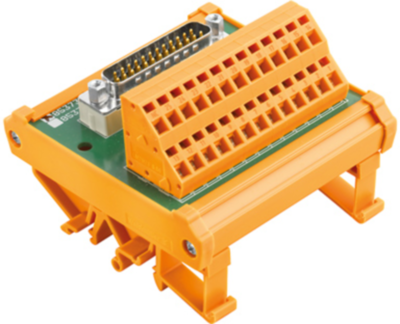

Transfer module, 8537370000, Weidmüller
Transfer module with terminal connector, SUB-D male according to IEC 60807-2 / DIN 41652, 25-pin male, LM2NZF 5.08 mm, Tension clamp connection.
Transfer module as interface with terminals and plug connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | transfer module | |
| Pin number | 25 pole | |
| Rated current | 1.5 A | |
| Rated voltage | 100 V | |
| Length | 80 mm | |
| Width | 87 mm | |
| Height | 63.6 mm | |
| Connection | tension clamp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
