8019970000 | Weidmüller
Transfer module, 50 pole, 1.5 A, 100 V, 8019970000, RS SD50S LP3R
Unit Price (€ / pc.)
102.2091 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
102.21 € *
Price list
Quantity
Price per unit*
1 pcs.
102.2091 €
2 pcs.
100.1623 €
*incl. VAT plus shipping costs
Subject to prior sale

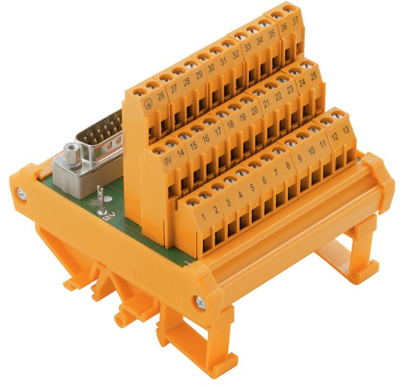

Transfer module, 8019970000, Weidmüller
Transfer module with terminal, Plug connector, SUB-D Plug according to IEC 60807-2 / DIN 41652, 50-pin plug, LP3R 5.08 mm, Screw connection.
Transfer module as interface with terminals and plug connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | transfer module | |
| Pin number | 50 pole | |
| Rated current | 1.5 A | |
| Rated voltage | 100 V | |
| Length | 145 mm | |
| Width | 87 mm | |
| Height | 80 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
