1463530000 | Weidmüller

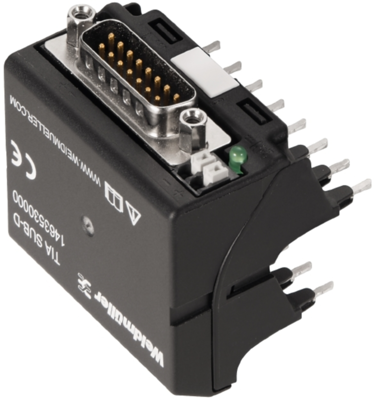

Transfer module, 15 pole, 24 V, 1463530000, TIA SUBD 15S
Unit Price (€ / pc.)
51.3009 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
51.30 € *
Price list
Quantity
Price per unit*
1 pcs.
51.3009 €
5 pcs.
49.2541 €
10 pcs.
46.7908 €
25 pcs.
44.4465 €
*incl. VAT plus shipping costs
Subject to prior sale
Interfacemodul, 1463530000, Weidmüller
Plug-in adapter (relay), Sub-D, 15-pin, DIN 41652 / IEC 60807, 24 VDC, 125 mA.
As accessories, plug-in adapters convert pre-assembled standard cables to the connections of the relay couplers. This greatly reduces lead times in control cabinet construction.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 43 mm | |
| Width | 51 mm | |
| Version | transfer module | |
| Rated voltage | 24 V | |
| Pin number | 15 pole | |
| Length | 52 mm | |
| Connection | push-in connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
